安装xilinx vivado 2023.1

安装Xilinx_Unified

安装包过大，参考 sftp上传文件到IC环境 解决。
ssh -XY root@tds047进入到安装包的目录下进行安装。

1. 进入到安装包目录，执行./xsetup。

   [root@tds047 Xilinx_Unified_2023.1_0507_1903]# ./xsetup
   This is a fresh install.
   INFO Could not detect the display scale (hDPI).
          If you are using a high resolution monitor, you can set the insaller scale factor like this:
          export XINSTALLER_SCALE=2
          setenv XINSTALLER_SCALE 2
   INFO  - Started in: 2 Sec
   INFO  - Installing Edition: Vivado ML Enterprise
   INFO  - Installation directory is /eda/tools/xilinx/vivado/2023.1

2. 在Select Product to Install选择Vivado。
3. 在Select Edition to Install选择Vivado ML Enterprise。

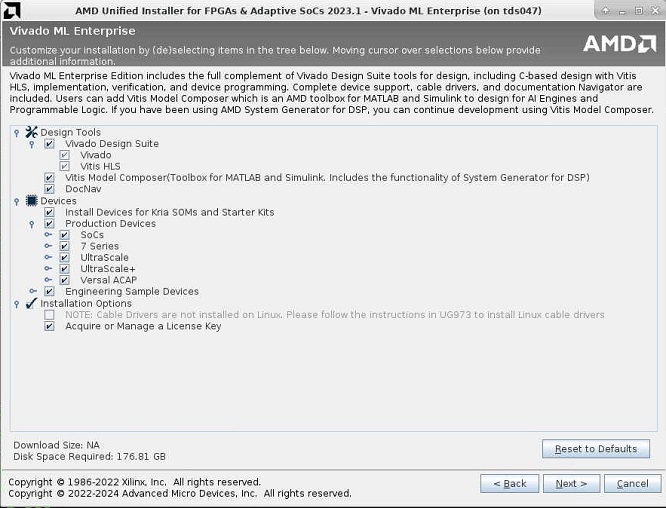

4. 选择需要的资源，默认即可，也可以全选上。点击Next后，将所有的I Agree全部勾选上。

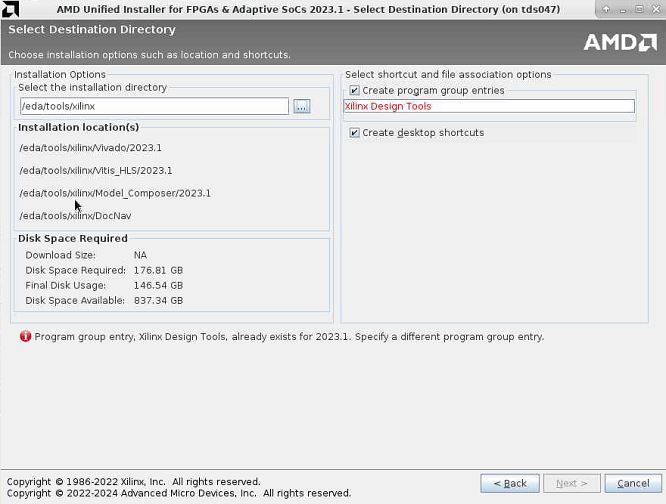

5. 选择安装目录/eda/tools/xilinx/vivado/2023.1进行安装。

6. 最后确认，进行Install。

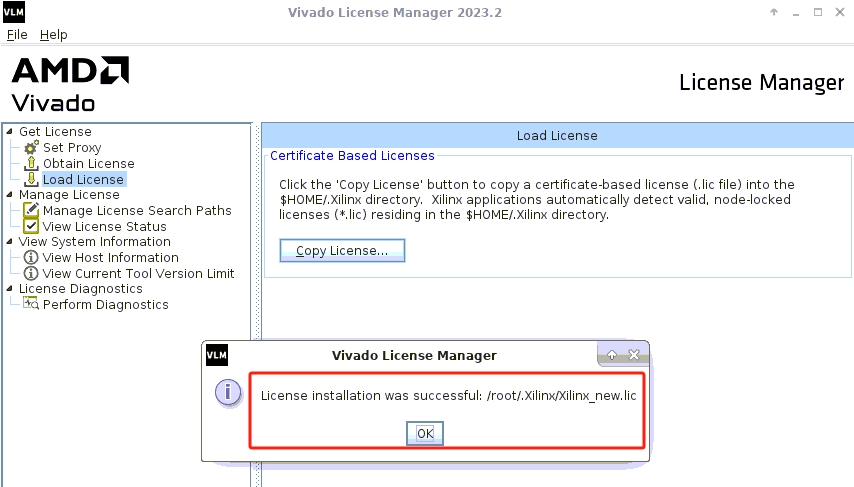

7. 安装完成后，在跳出来的License Manager窗口选择Load License——>Copy License

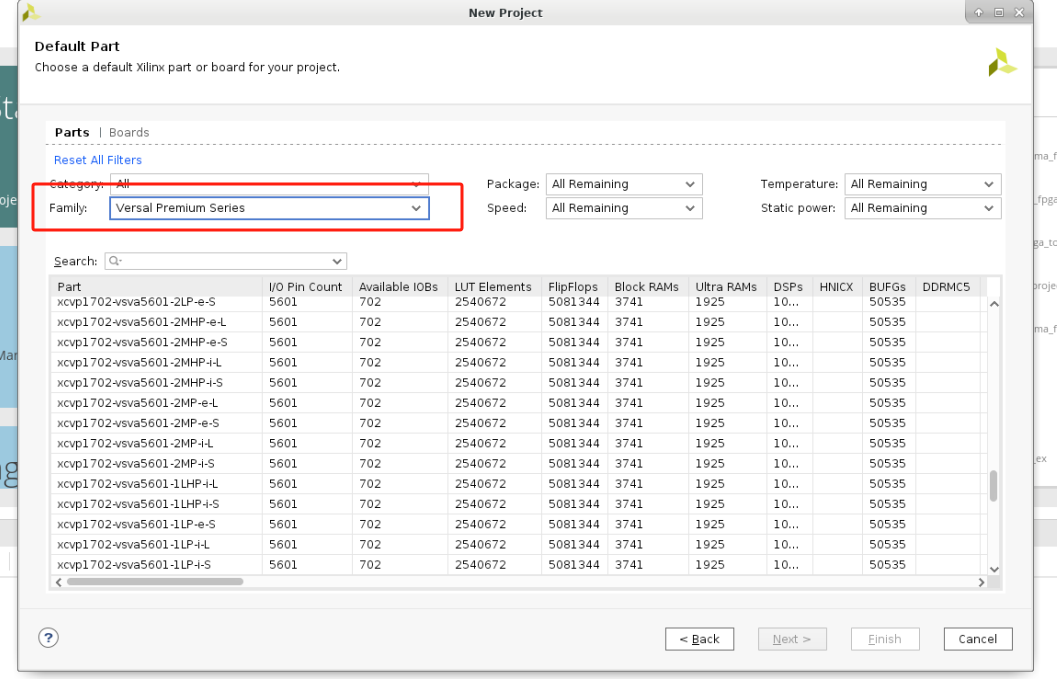

8. 创建工程查看器件是否可用

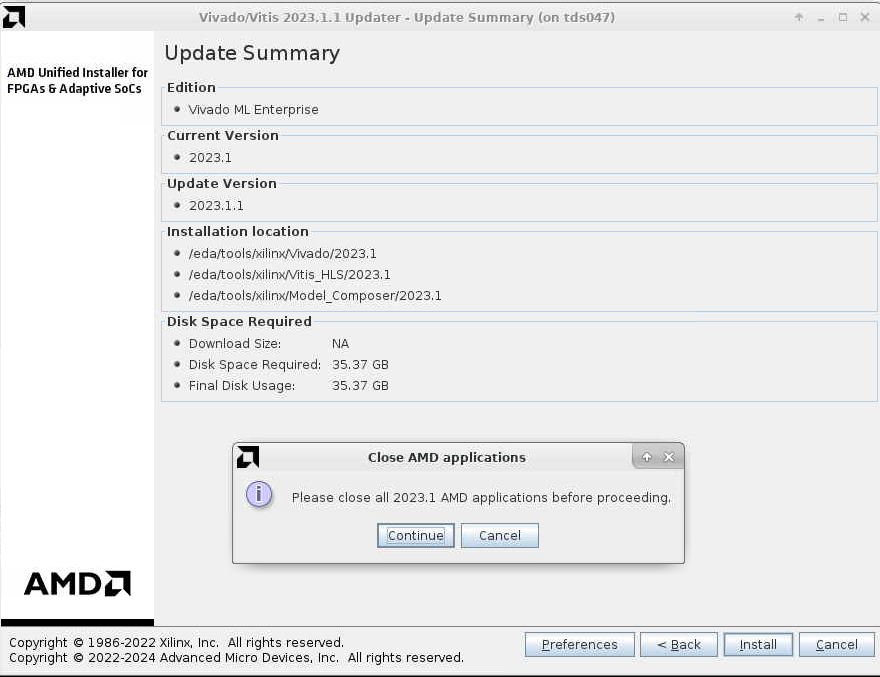

9. 升级到2023.1.1版本

   [root@tds047 ~]# cd /local_data/upload_qianj/
   [root@tds047 upload_qianj]# cd Xilinx_Vivado_Vitis_Update_2023.1.1_0617_0347/
   [root@tds047 Xilinx_Vivado_Vitis_Update_2023.1.1_0617_0347]#./xsetup

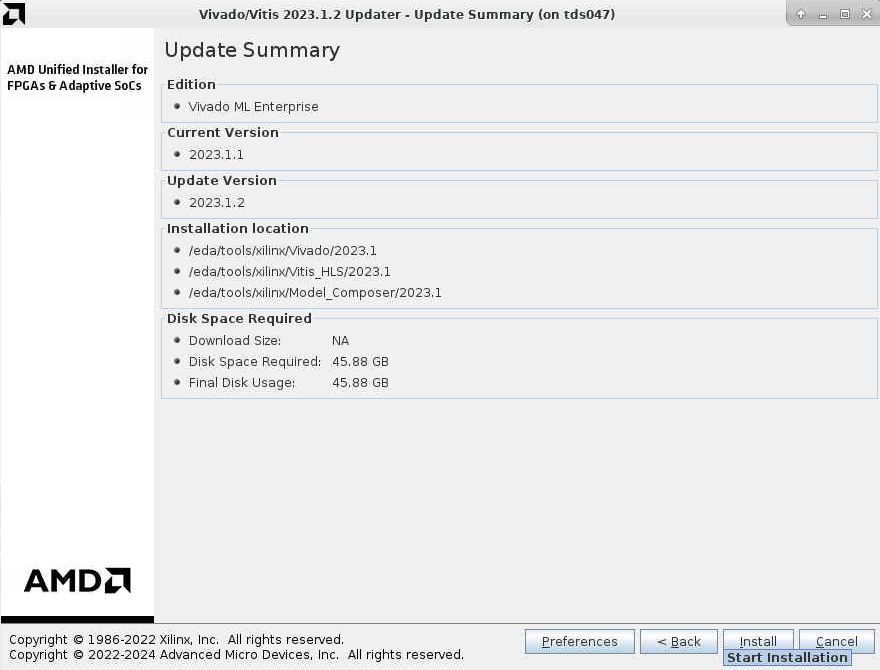

10. 升级到2023.1.2版本

    [root@tds047 ~]# cd /local_data/upload_qianj/
    [root@tds047 upload_qianj]# cd Xilinx_Vivado_Vitis_Update_2023.1.2_0814_1100/
    [root@tds047 Xilinx_Vivado_Vitis_Update_2023.1.2_0814_1100]#./xsetup


11. 确认版本

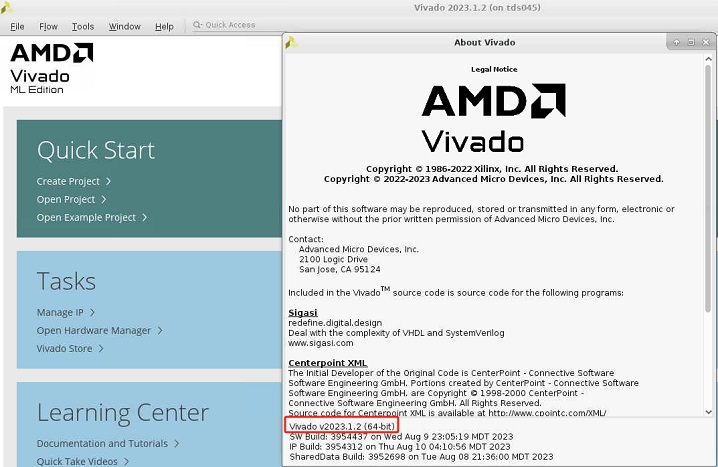

    查看版本为2023.1.2


有一个2020.2的版本安装包存放在tds045的/local_data目录下

[qianj@tds045 /local_data]$  pwd
/local_data
[qianj@tds045 /local_data]$
[qianj@tds045 /local_data]$ du -sh Xilinx_Unified_2020.2_1118_1232/
45G     Xilinx_Unified_2020.2_1118_1232/
[qianj@tds045 /local_data]$

安装FPGAs_AdaptiveSoCs_Unified

1. 安装包目录

   root@tds043 vivado2023.2]# pwd
   /local_data/vivado2023.2
   [root@tds043 vivado2023.2]# ll
   total 108893052
   drwxr-xr-x 8 root  root        4096 Nov  7  2023 FPGAs_AdaptiveSoCs_Unified_2023.2_1013_2256
   -rw-r--r-- 1 shizh THU  21474836480 May 14 10:30 FPGAs_AdaptiveSoCs_Unified_2023.2_1013_2256.part1.rar
   -rw-r--r-- 1 shizh THU  21474836480 May 14 10:51 FPGAs_AdaptiveSoCs_Unified_2023.2_1013_2256.part2.rar
   -rw-r--r-- 1 shizh THU  21474836480 May 14 11:17 FPGAs_AdaptiveSoCs_Unified_2023.2_1013_2256.part3.rar
   -rw-r--r-- 1 shizh THU  21474836480 May 14 11:39 FPGAs_AdaptiveSoCs_Unified_2023.2_1013_2256.part4.rar
   -rw-r--r-- 1 shizh THU  21474836480 May 14 13:40 FPGAs_AdaptiveSoCs_Unified_2023.2_1013_2256.part5.rar
   -rw-r--r-- 1 shizh THU   4132296734 May 14 14:38 FPGAs_AdaptiveSoCs_Unified_2023.2_1013_2256.part6.rar
   [root@tds043 vivado2023.2]# chmod -R +x FPGAs_AdaptiveSoCs_Unified_2023.2_1013_2256
   [root@tds043 vivado2023.2]# cd FPGAs_AdaptiveSoCs_Unified_2023.2_1013_2256/
   [root@tds043 FPGAs_AdaptiveSoCs_Unified_2023.2_1013_2256]#
   root@tds043 FPGAs_AdaptiveSoCs_Unified_2023.2_1013_2256]# ll
   total 3672
   -rw-r--r-- 1 root root   19264 Oct 14  2023 api-ms-win-core-console-l1-1-0.dll
   -rw-r--r-- 1 root root   18752 Oct 14  2023 api-ms-win-core-datetime-l1-1-0.dll
   -rw-r--r-- 1 root root   18752 Oct 14  2023 api-ms-win-core-debug-l1-1-0.dll
   -rw-r--r-- 1 root root   18752 Oct 14  2023 api-ms-win-core-errorhandling-l1-1-0.dll
   -rw-r--r-- 1 root root   22336 Oct 14  2023 api-ms-win-core-file-l1-1-0.dll
   -rw-r--r-- 1 root root   18752 Oct 14  2023 api-ms-win-core-file-l1-2-0.dll
   -rw-r--r-- 1 root root   18744 Oct 14  2023 api-ms-win-core-file-l2-1-0.dll
   -rw-r--r-- 1 root root   18752 Oct 14  2023 api-ms-win-core-handle-l1-1-0.dll
   -rw-r--r-- 1 root root   19264 Oct 14  2023 api-ms-win-core-heap-l1-1-0.dll
   -rw-r--r-- 1 root root   18752 Oct 14  2023 api-ms-win-core-interlocked-l1-1-0.dll
   -rw-r--r-- 1 root root   19264 Oct 14  2023 api-ms-win-core-libraryloader-l1-1-0.dll
   -rw-r--r-- 1 root root   21312 Oct 14  2023 api-ms-win-core-localization-l1-2-0.dll
   -rw-r--r-- 1 root root   19264 Oct 14  2023 api-ms-win-core-memory-l1-1-0.dll
   -rw-r--r-- 1 root root   18752 Oct 14  2023 api-ms-win-core-namedpipe-l1-1-0.dll
   -rw-r--r-- 1 root root   19776 Oct 14  2023 api-ms-win-core-processenvironment-l1-1-0.dll
   -rw-r--r-- 1 root root   20800 Oct 14  2023 api-ms-win-core-processthreads-l1-1-0.dll
   -rw-r--r-- 1 root root   19256 Oct 14  2023 api-ms-win-core-processthreads-l1-1-1.dll
   -rw-r--r-- 1 root root   18240 Oct 14  2023 api-ms-win-core-profile-l1-1-0.dll
   -rw-r--r-- 1 root root   19264 Oct 14  2023 api-ms-win-core-rtlsupport-l1-1-0.dll
   -rw-r--r-- 1 root root   18752 Oct 14  2023 api-ms-win-core-string-l1-1-0.dll
   -rw-r--r-- 1 root root   20800 Oct 14  2023 api-ms-win-core-synch-l1-1-0.dll
   -rw-r--r-- 1 root root   19264 Oct 14  2023 api-ms-win-core-synch-l1-2-0.dll
   -rw-r--r-- 1 root root   19776 Oct 14  2023 api-ms-win-core-sysinfo-l1-1-0.dll
   -rw-r--r-- 1 root root   18752 Oct 14  2023 api-ms-win-core-timezone-l1-1-0.dll
   -rw-r--r-- 1 root root   18752 Oct 14  2023 api-ms-win-core-util-l1-1-0.dll
   -rw-r--r-- 1 root root   19776 Oct 14  2023 api-ms-win-crt-conio-l1-1-0.dll
   -rw-r--r-- 1 root root   22848 Oct 14  2023 api-ms-win-crt-convert-l1-1-0.dll
   -rw-r--r-- 1 root root   19264 Oct 14  2023 api-ms-win-crt-environment-l1-1-0.dll
   -rw-r--r-- 1 root root   20800 Oct 14  2023 api-ms-win-crt-filesystem-l1-1-0.dll
   -rw-r--r-- 1 root root   19776 Oct 14  2023 api-ms-win-crt-heap-l1-1-0.dll
   -rw-r--r-- 1 root root   19264 Oct 14  2023 api-ms-win-crt-locale-l1-1-0.dll
   -rw-r--r-- 1 root root   27968 Oct 14  2023 api-ms-win-crt-math-l1-1-0.dll
   -rw-r--r-- 1 root root   26944 Oct 14  2023 api-ms-win-crt-multibyte-l1-1-0.dll
   -rw-r--r-- 1 root root   71488 Oct 14  2023 api-ms-win-crt-private-l1-1-0.dll
   -rw-r--r-- 1 root root   19768 Oct 14  2023 api-ms-win-crt-process-l1-1-0.dll
   -rw-r--r-- 1 root root   23360 Oct 14  2023 api-ms-win-crt-runtime-l1-1-0.dll
   -rw-r--r-- 1 root root   24896 Oct 14  2023 api-ms-win-crt-stdio-l1-1-0.dll
   -rw-r--r-- 1 root root   24896 Oct 14  2023 api-ms-win-crt-string-l1-1-0.dll
   -rw-r--r-- 1 root root   21312 Oct 14  2023 api-ms-win-crt-time-l1-1-0.dll
   -rw-r--r-- 1 root root   19256 Oct 14  2023 api-ms-win-crt-utility-l1-1-0.dll
   drwxr-xr-x 3 root root    4096 Nov  7  2023 bin
   -rw-r--r-- 1 root root  315784 Oct 14  2023 concrt140.dll
   drwxr-xr-x 3 root root    4096 Nov  7  2023 data
   -rw-r--r-- 1 root root    4016 Oct 14  2023 installLibs.sh
   drwxr-xr-x 5 root root      51 Nov  7  2023 lib
   -rw-r--r-- 1 root root   23944 Oct 14  2023 msvcp140_1.dll
   -rw-r--r-- 1 root root  185736 Oct 14  2023 msvcp140_2.dll
   -rw-r--r-- 1 root root  565640 Oct 14  2023 msvcp140.dll
   drwxr-xr-x 2 root root   49152 Nov  7  2023 payload
   drwxr-xr-x 2 root root      56 Nov  7  2023 scripts
   drwxr-xr-x 5 root root      52 Nov  7  2023 tps
   -rw-r--r-- 1 root root 1001792 Oct 14  2023 ucrtbase.dll
   -rw-r--r-- 1 root root  334728 Oct 14  2023 vccorlib140.dll
   -rw-r--r-- 1 root root   37256 Oct 14  2023 vcruntime140_1.dll
   -rw-r--r-- 1 root root   97160 Oct 14  2023 vcruntime140.dll
   -rw-r--r-- 1 root root    4360 Oct 14  2023 xsetup
   -rw-r--r-- 1 root root   73832 Oct 14  2023 xsetup.exe
   -rw-r--r-- 1 root root     381 Oct 14  2023 xsetup.exe.manifest
   -rw-r--r-- 1 root root   64512 Oct 14  2023 xsetup.exe_orig
   [root@tds043 FPGAs_AdaptiveSoCs_Unified_2023.2_1013_2256]#

2. 安装

   sh-4.2$ ssh -XY root@tds043
   root@tds043's password:
   Last login: Wed May 15 09:33:59 2024

   [root@tds043 ~]# cd /local_data/vivado2023.2/FPGAs_AdaptiveSoCs_Unified_2023.2_1013_2256/
   [root@tds043 FPGAs_AdaptiveSoCs_Unified_2023.2_1013_2256]# ./xsetup
   This is a fresh install.
   INFO Could not detect the display scale (hDPI).
          If you are using a high resolution monitor, you can set the insaller scale factor like this:
          export XINSTALLER_SCALE=2
          setenv XINSTALLER_SCALE 2
   INFO  - Started in: 3 Sec

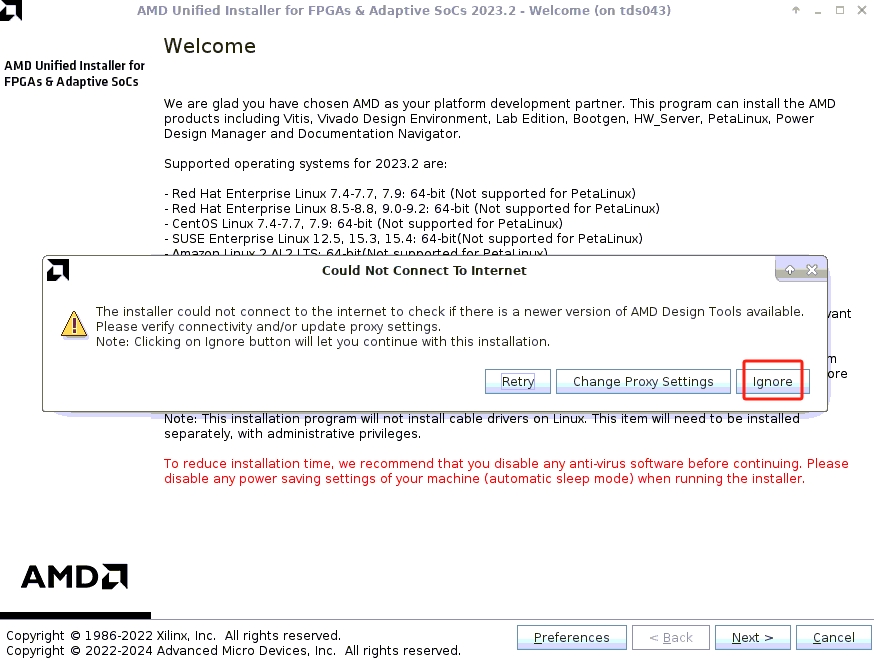

   安装FPGAs_AdaptiveSoCs_Unified_2023.2

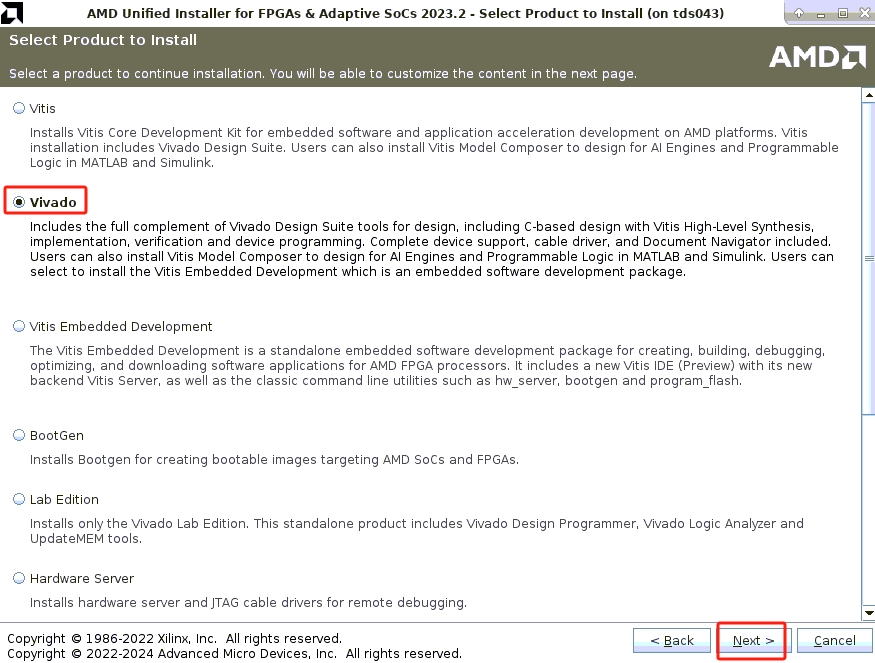

选择vivado

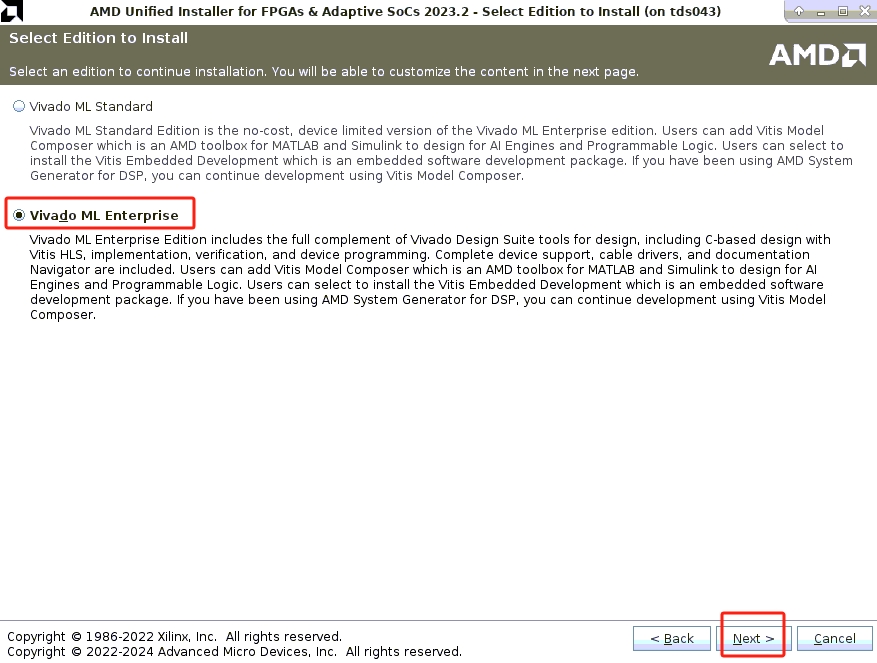

选择vivado ml enterprise

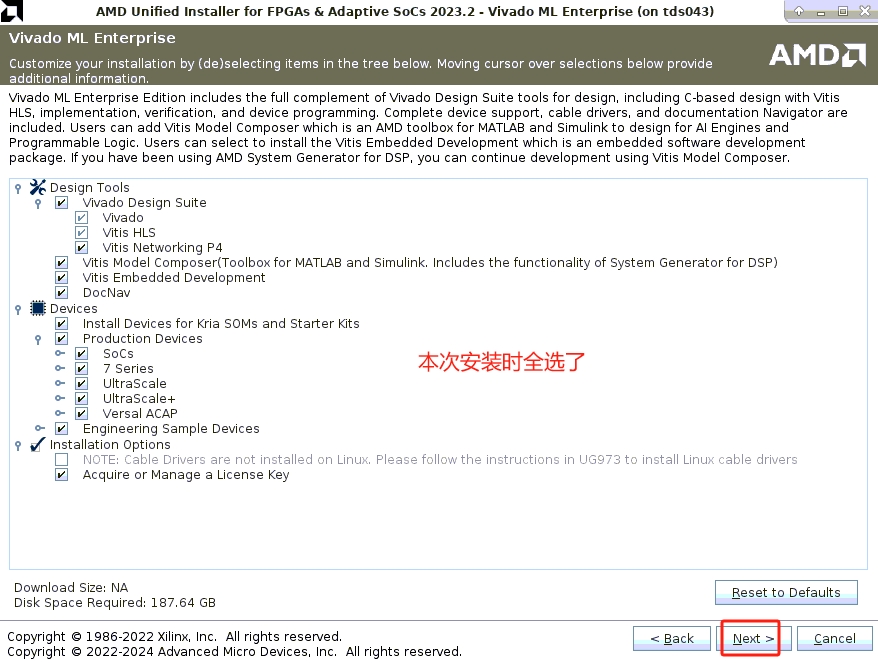

本次安装全选了

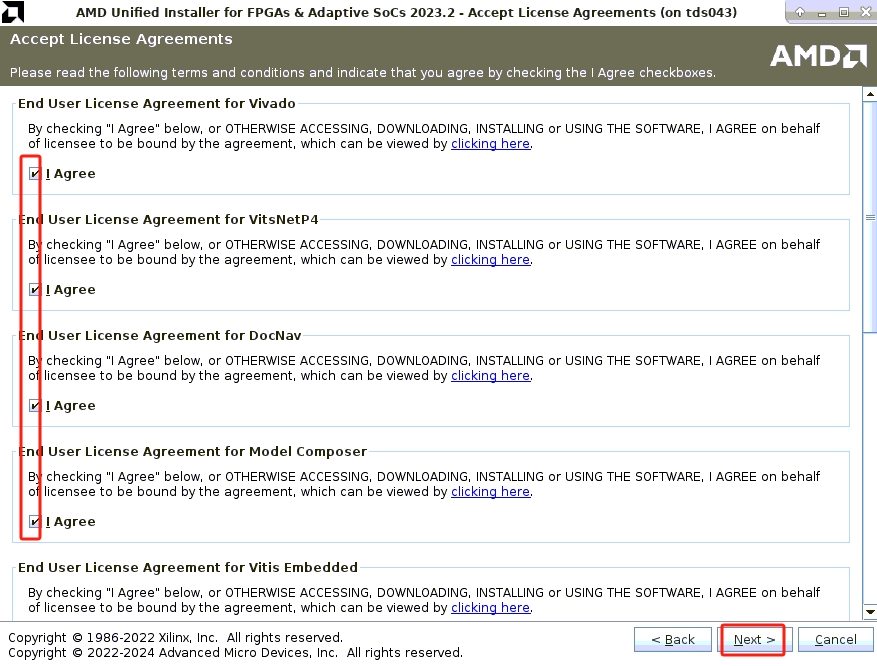

勾选所有的I Agree

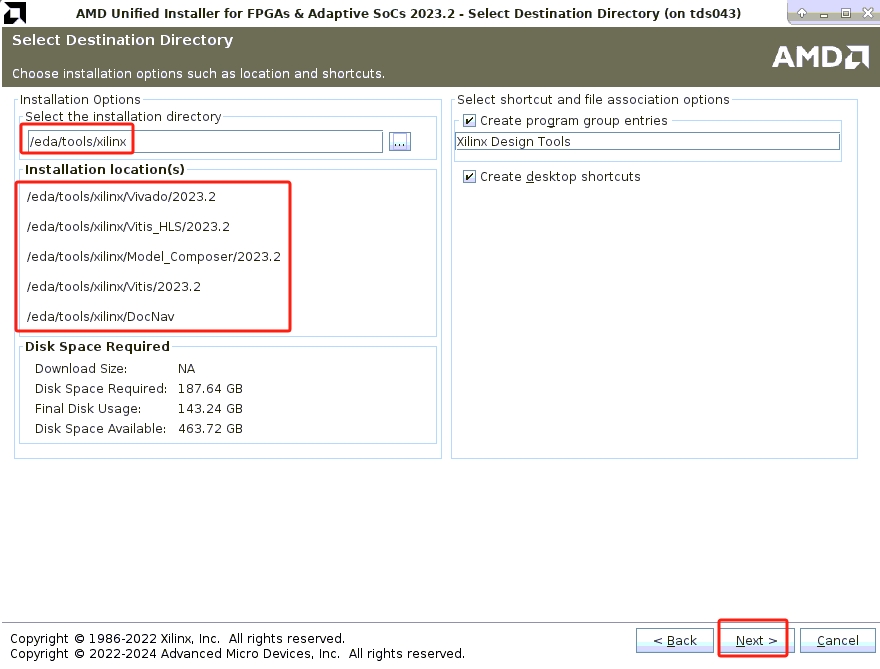

选择安装目录/eda/tools/xilinx

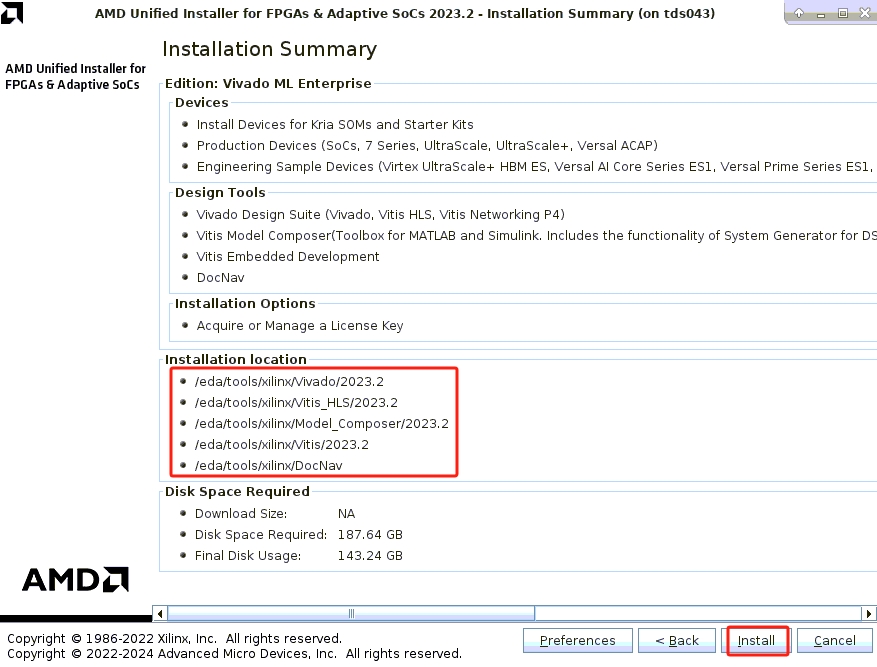

确认后Install

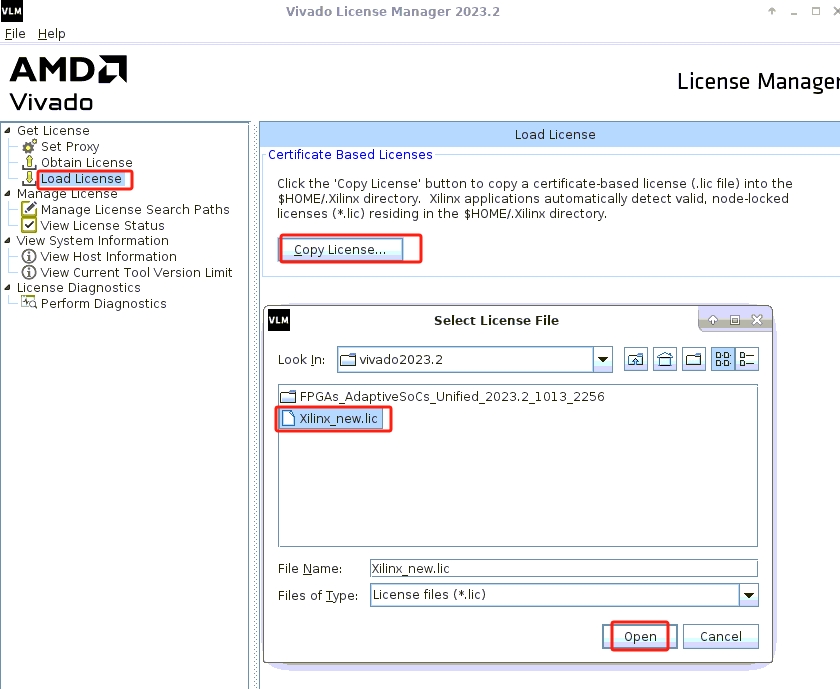

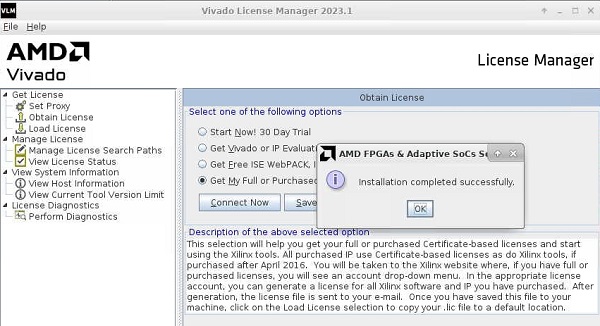

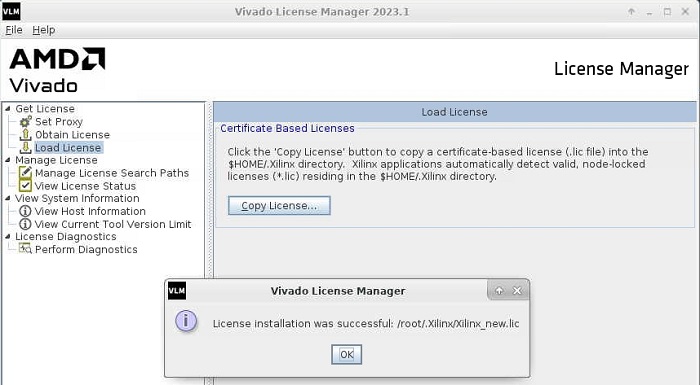

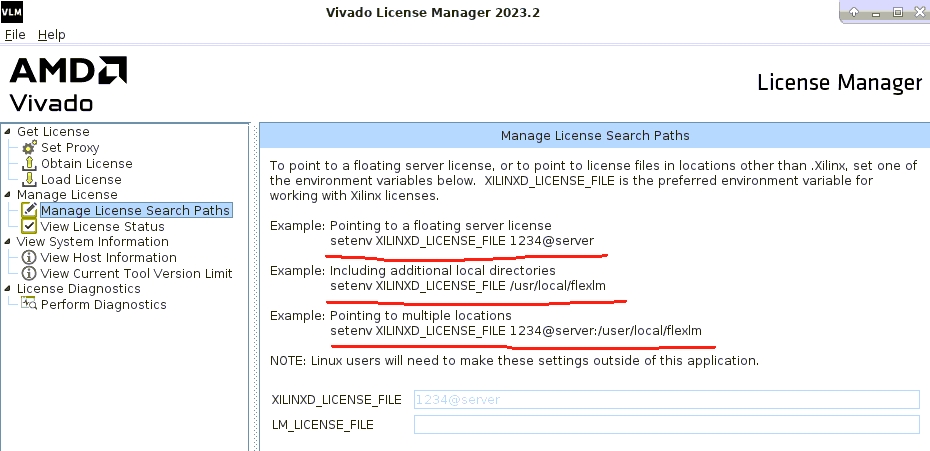

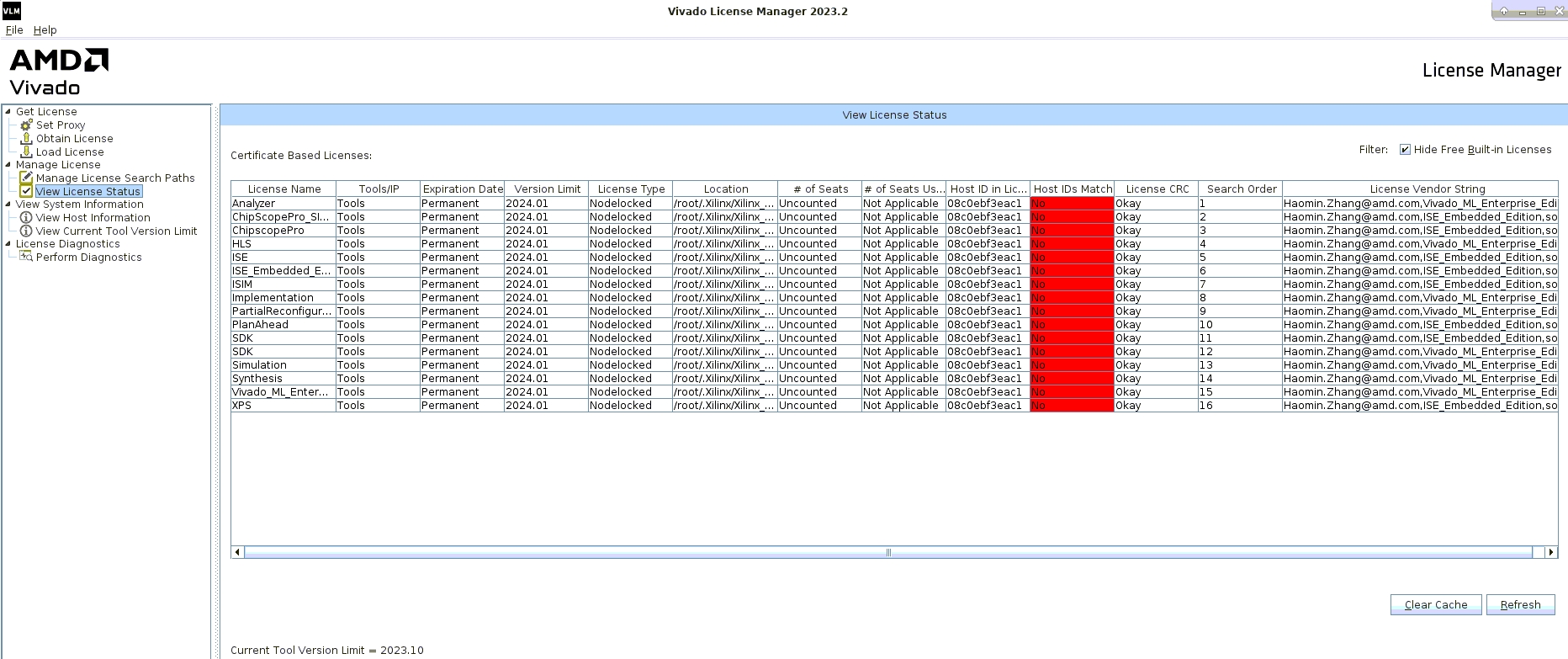

安装完成后，跳出license manager，选择load license，点击copy license，选择lic文件。

3. 使用

   [qianj@tds043 vivado2023.2]$ module load Vivado/2023.2

   [qianj@tds043 vivado2023.2]$ env | grep -i lic
   CDS_LIC_FILE=/eda/env/lics/cadence.dat:27000@tds056:27000@tds057
   SNPSLMD_LICENSE_FILE=27002@192.168.22.21:27000@tds063:27000@tds060:27000@tds057
   DW_WAIT_LICENSE=1
   MGLS_LICENSE_FILE=27000@tds063:27000@tds060:27000@tds056:27000@tds057
   ATRENTA_LICENSE_FILE=27000@tds063:27000@tds060:27000@tds056:27000@tds057
   ALTERAD_LICENSE_FILE=/eda/env/lics/altera_tds042.dat:/eda/env/lics/altera_tds044.dat:/eda/env/lics/altera_tds040.dat:/eda/env/lics/altera_any.dat
   XILINXD_LICENSE_FILE=/eda/env/lics/xilinux_2037.dat:27000@tds056:27000@tds057


   [qianj@tds043 vivado2023.2]$ vivado

   ****** Vivado v2023.2 (64-bit)
     **** SW Build 4029153 on Fri Oct 13 20:13:54 MDT 2023
     **** IP Build 4028589 on Sat Oct 14 00:45:43 MDT 2023
     **** SharedData Build 4025554 on Tue Oct 10 17:18:54 MDT 2023
       ** Copyright 1986-2022 Xilinx, Inc. All Rights Reserved.
       ** Copyright 2022-2023 Advanced Micro Devices, Inc. All Rights Reserved.

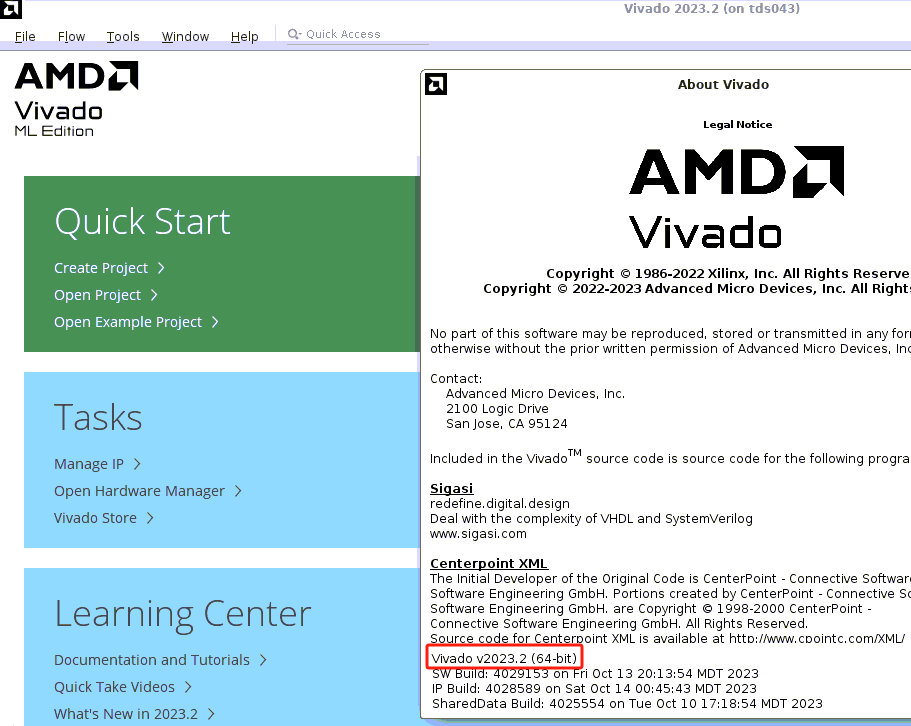

   start_gui
